2017 Prinoth Panther T12 - Stock #6387D

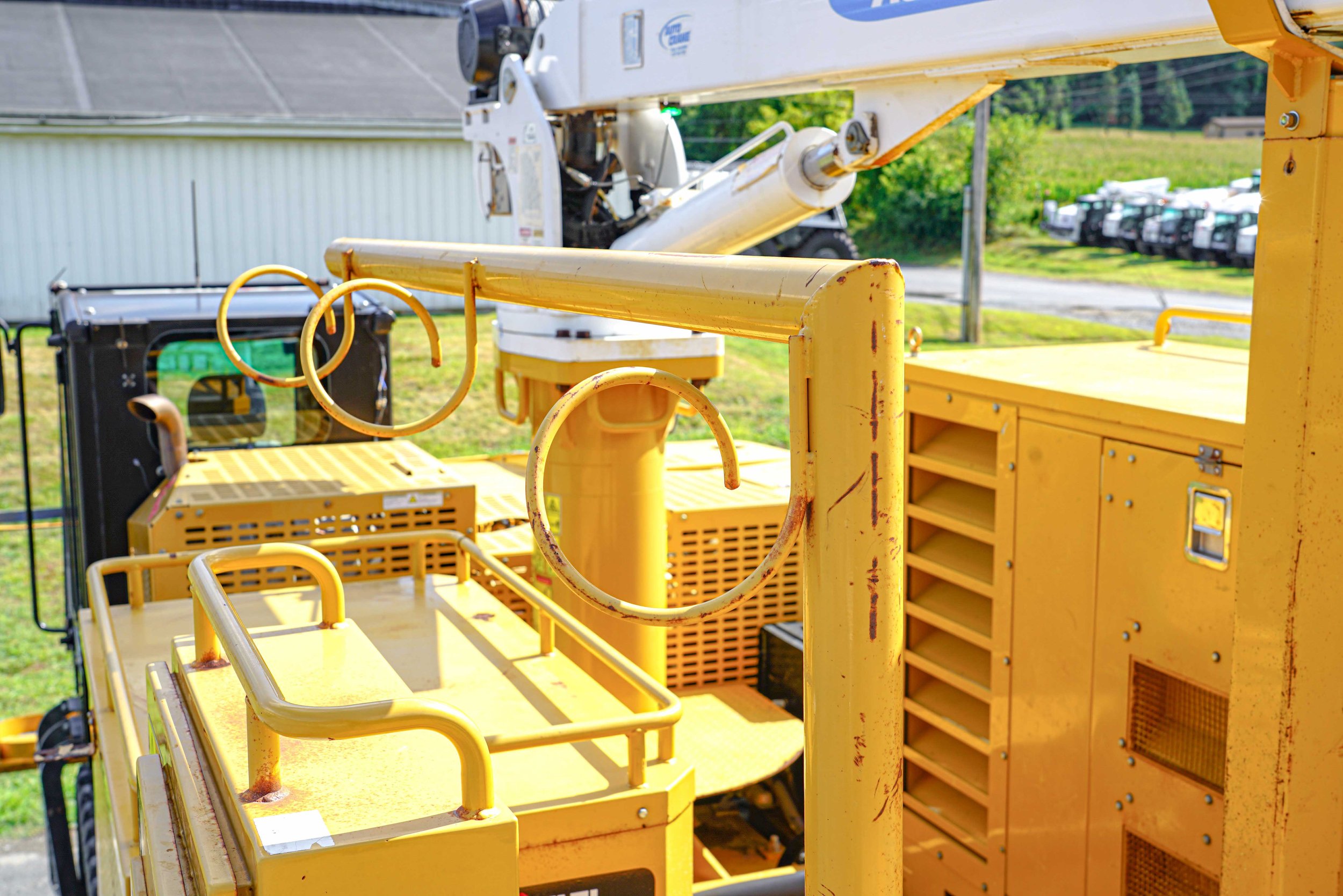

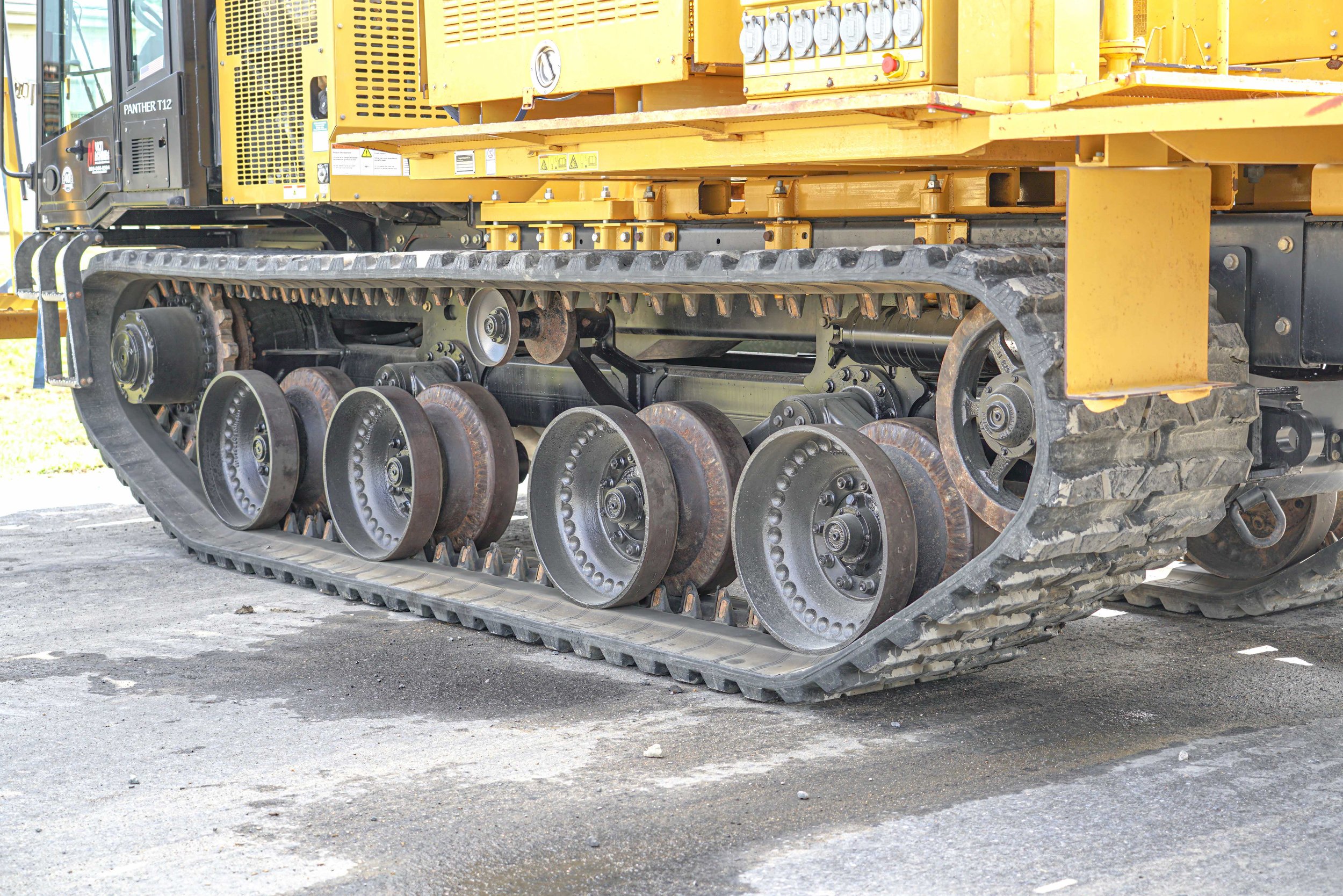

The Prinoth Panther T12 is an extremely versatile rubber tracked crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. Their 34-inch-wide chassis allows them to be outfitted with a number of different implements, making them an ideal platform for many applications. This track truck is equipped with a Vanguard CPW 125-4 welding rig and a HC-12 crane. For more information about purchasing or renting this machine, do not hesitate to contact Multi Machine Inc.
Hours: 1171
Serial #: 935300082
The Prinoth Panther T12 is an extremely versatile rubber tracked crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. Their 34-inch-wide chassis allows them to be outfitted with a number of different implements, making them an ideal platform for many applications. This track truck is equipped with a Vanguard CPW 125-4 welding rig and a HC-12 crane. For more information about purchasing or renting this machine, do not hesitate to contact Multi Machine Inc.
Hours: 1171
Serial #: 935300082
The Prinoth Panther T12 is an extremely versatile rubber tracked crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. Their 34-inch-wide chassis allows them to be outfitted with a number of different implements, making them an ideal platform for many applications. This track truck is equipped with a Vanguard CPW 125-4 welding rig and a HC-12 crane. For more information about purchasing or renting this machine, do not hesitate to contact Multi Machine Inc.
Hours: 1171
Serial #: 935300082
-
Weight: 27,500 lbs.
Capacity: 25,000 lbs.
Ground Pressure (Empty): 2.94 psi
Ground Pressure (Loaded): 5.91 psi
Engine: Caterpillar C7.1 ACERT
Horsepower @ 2,200 RPM: 250 HP
Torque @ 1,400 RPM: 895.4 lb-ft
Max Speed: 6.2 mph
Fuel Tank Capacity: 65 gallons
Length: 31’5”
Width: 10’5”
Height: 12’3”
Ground Clearance: 21”
Uphill/Downhill Gradeability: 60%
Side Hill Gradeability: 40%
-
Generator Module
Design: 170 hp 6 cylinder engine equipped with 24 volt starting system, idle control, ether starting aid, block heater, pan heater, heavy duty radiator, primary and secondary fuel filters, and a 156 kVA generator.
Rating: 156 kVA @ 60 Hz, 125 kVA @ 50 Hz
Control Distribution Module
Design: Control Box Nema 3 with Nema 4 enhancements mounted on isolators with 2 lockable doors CSA/UL/CE Approved.
Rating: 200 AMP
Air Compressor Module
Design: Gardner-Denver/Champion with four opposing cylinders, pressure lubricated for off-level operations, vibration mounted. The compressor is equipped with an aftercooler that removes up to 65% of the moisture from the compressed air.
Duty Cycle:
70% at 250 psi (17.2 bar), or continuous with synthetic oils.Air Tank Module
Design: Low profile vertical air receiver certified to ASME codeRating: 115 US gal. (435.3 liters) at 250 psi (17.2 bar)
Welder Module
Design: 4 welders of customer's choice, mounted in lockable box and vibration mounted, with sliding shelves for ease of servicing
-
Capacity: 12,000 lbs (5,443 kg) at 6 ft (1.83 m)
Rating: 85,000 ft-lb (11.75 t-m)
Length: 30 ft (9.14 m) fully extended
Weight: 3,140 lb (1,379 kg)
Chassis: Class 7 (29,000 GVWR)
